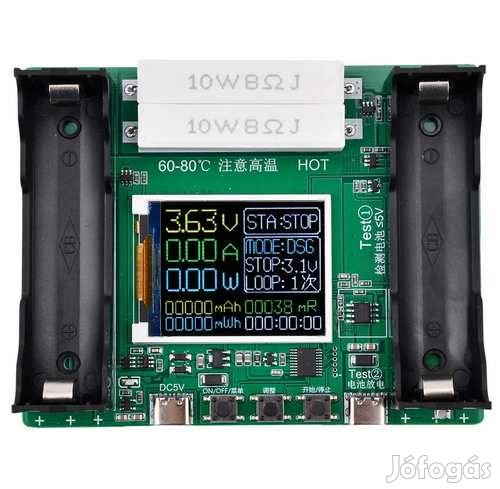

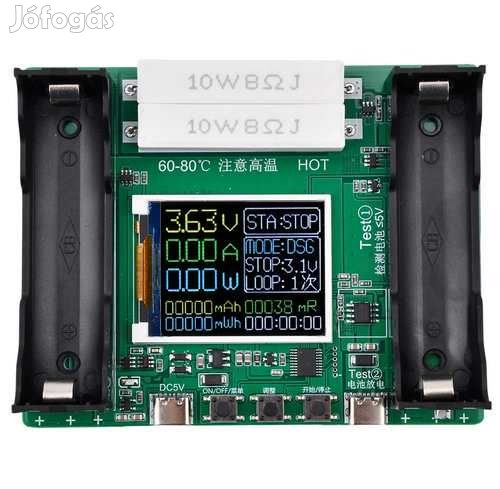

18650 Cellakapacitás-mérő Modul Kijelzővel AE2 (4968)

18650 Cellakapacitás-mérő Modul Kijelzővel AE2 (4968) (Kategória: Szerszámok)<p>18650 Cellakapacitás-mérő Modul Kijelzővel AE2</p>
<p></p>
<p>Product features:</p>
<p>The product supports single channel capacity and internal
resistance measurement</p>
<p>Supports individual charging and discharging, up to 9 charging
and discharging cycles in automatic mode:</p>
<p>11 levels of adjustable stopping and discharging voltage</p>
<p>DC two-wire method for internal resistance testing, switchable
between English and Chinese:</p>
<p>Maximum charging and discharging flow is about 1A</p>
<p>Upgrade points:</p>
<p>1. Chinese and English interface adjustable</p>
<p>2. Adjustable 11 levels of stopping and discharging voltage</p>
<p>3. Support 1-9 times automatic cycle</p>
<p>4. Increased completion status indication</p>
<p>5. Charge measurement increased.</p>
<p>6. The new version also supports testing 21700 batteries, with
21700 battery holder, you can achieve DIY transformation</p>
<p>Caution:</p>
<p>Please ensure that the environment is open and uncovered, if you
can add a fan to dissipate heat, it is better.</p>
<p>In order to ensure that the battery clamps firmly, 18650 battery
holders use compact battery holders, suitable for flat-head battery
measurement!</p>
<p>Does not support the charging of lithium iron phosphate
batteries</p>
<p>Basic parameters:</p>
<p>Working power supply: DC5V power supply or 18650 battery (need
to provide their own)</p>
<p>Applicable battery: meet the stop discharge voltage 2.5 ~ 3.5V,
2.8V start ~ 4.2V full battery are applicable</p>
<p>Power supply interface: Type-C interface, power supply cable
self-provided (C-port mobile phone cable)</p>
<p>System language: Chinese (default), English</p>
<p>Number of tests: 1-channel charge and discharge measurement
(right-hand battery position only)</p>
<p>Internal resistance measurement: supported, using the DC
two-wire method to test internal resistance</p>
<p>Charging function: supported, full automatic cut-off charging
(LiFePO4 charging not supported)</p>
<p>Discharge function: supported, automatic stop when conditions
are met, discharge current is not adjustable</p>
<p>Automatic charging and discharging: supported, battery is fully
charged at the end of automatic mode</p>
<p>Cycle charging and discharging: supported, 1~9 cycles adjustable
(only supported in auto mode)</p>
<p>Status indication: supported</p>
<p>Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V,
3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 levels adjustable</p>
<p>Discharge current: two-way resistor, max. 1A current, not
adjustable, does not support independent transformation</p>
<p>Charging voltage: special battery charging chip control, max. 1A
charging, full charge voltage 4.2V</p>
<p>Power failure save: only the setting parameters are saved, not
the measurement data</p>
<p>Product weight: 80g (net weight) 120g (including packaging)</p>
<p>Product dimensions: 110 x 88 x 30mm</p>
<p>Package size: 153×100×42mm</p>
