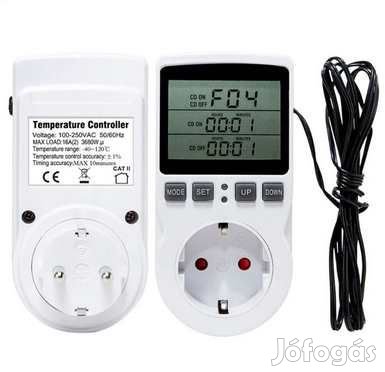

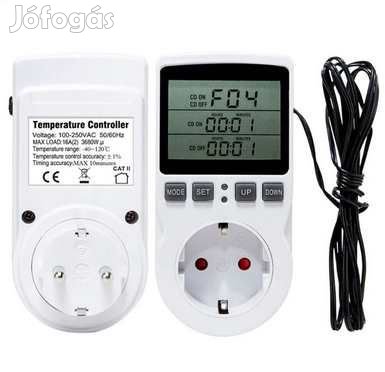

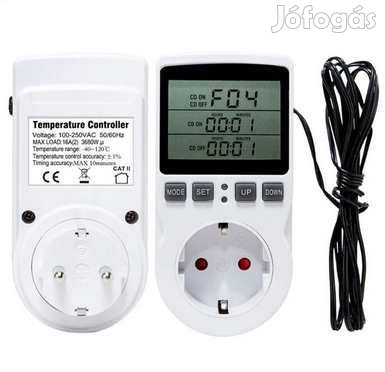

Konnektort Vezérlő hőmérséklet Thermosztát (3217)

Konnektort Vezérlő hőmérséklet Thermosztát (3217) (Kategória: Hőmérők, Páratartalommérők)<p>Konnektort vezérlő hőmérséklet szabályzó thermosztát, melegházak
vagy egyéb helyek, fŰtésének, hŰtésének, vagy a szellőzésének a
szabályozásához. Maximum 16 Ampert, 3850 Wattot bír.</p>
<p>1. Function
<br />The external temperature detector can detect the temperature
<br />Set the start and stop temperature
<br />Cycle timing, start and stop time, timer switch
<br />It is widely used in intelligent control, such as carbon
heating, aquaculture,greenhouse, home life and other places.
<br />
<br />2. Technical parameters
<br />Voltage 110V~230V AC 50Hz/60Hz
<br />Max Load: 16A(2) 3680W.u , (15A for US type)
<br />Temperature Range: -40~120°C
<br />Accuracy: +/- 1%
<br />Timing Accuracy: MAX 10 minutes
<br />Temperature range: -40~120°C
<br />Open circuit (or less than -40°C), the first row of the
screen flashes display ''E1'', -40~-45°C, display -40°C
<br />Short circuit( or more than 120°C ), the first row of the
screen flashes displaty ''E2'', 121-129°C display 120°C
<br />Lower than -10°C, or higher than 100°C, it will not display
value behind the decimal point
<br />Refrigeration mode, start temperature > Stop temperature
<br />Heating mode, start temperature < stop temperature
<br />
<br />3. Mode button
<br />Press MODE. LCD display: temperature control mode
<br />Timing mode F01-F04
<br />F01 Cycling timing mode, start time(ON)/stop time(OFF)
cycling timing.
<br />F02 Count down ON mode, now Ti.s OFF, delayed(start time) ON
<br />F03 Count down OFF mode, now Ti.s ON, delayed(stop time) OFF,
countdown completion, turn off the output and exit the run
<br />F04 Count down ON Count down OFF mode, now Ti.s OFF,
delayed(start time) ON, After starting delayed ( Stop time )OFF,
Stop the time to finish the countdown, close out the output and
exit the operation
<br />
<br />4.Temperature correction function
<br />Long press mode button on electricity, real time temperature
calibration after 2 seconds
<br />Real time temperature correction range: -9.9~9.9°C
<br />Long press the SET for 5 seconds to automatically exit, do
not save modification
<br />Long press MODE button to exit, save the cuttent correction
modification
<br />
<br />5.Screen lock protection function
<br />6.Press the RESET to restore the screen for one second, and
restore the factory settings.
<br />7.Memory function after power off
<br />
<br />8.Package Content:
<br />1 x Thermostat Timer Socket with temperature sensor</p>
<p> </p>
<p>S65 2024.09.12</p>
